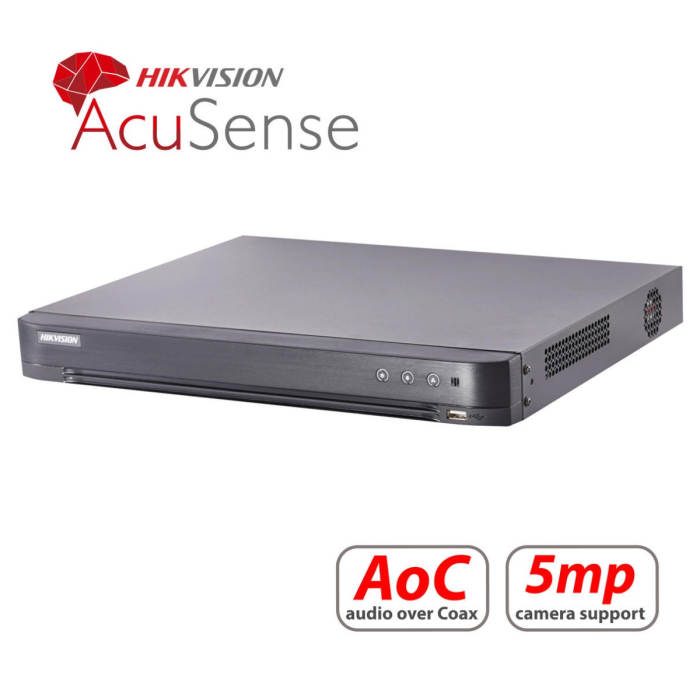

32CH, HIKVISION DVR, ACUSENSE, 2MP RECORDING, AOC
- 32 Channel Hikvision DVR
- 4ch, AcuSense Human/vehicle analysis supported
- AoC (audio over coax) audio/video recording over the same coax or CAT5/6 cable (CAT5/6 requires AoC Balun)
- 4ch, AcuSense Human/vehicle analysis supported
- 32 x TVI-3K/2MP-AHD/CVI max cameras supported
- Max TVI recording resolution 4MPlite-15fps, 2MP-15fps
- Up to 8 x IP cameras (max 6MP) supported give total of 40 channel recording
- 2 x HDD supported, up to 10 TB capacity each
- RS-485 supported, simplex output mode
- Coaxitron PTZ control up the coax, (Baluns over CAT5 supported)
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
IDS-7232HQHI-M2_S(E) | 1.1 MB | Download |
This 16 channel Hikvision AcuSense DVR offers 4 x “Deep learning” based analysis channels to provide recognition of the human body or vehicle target in behavior detection to filter false alarm. It supports max resolution for signal types up to 5MP-TV|I,2mp-AHD/CVI cameras, max recording resolution is 4MPlite-12fps for TVI/AHD/CVI camera. AoC (audio over coax) to provides audio/video recording over the same coax cable when used with supporting cameras. AoC is supported over CAT5/6 when used with our range of video Baluns. These DVR’s are fully Hybrid and allow the connection of up to 8 x IP cameras (max 6MP) along with 32 x HD-Analogue giving a total of 40 camera support. Additional IP cameras can be connected in place of unused HD-Analogue inputs.
