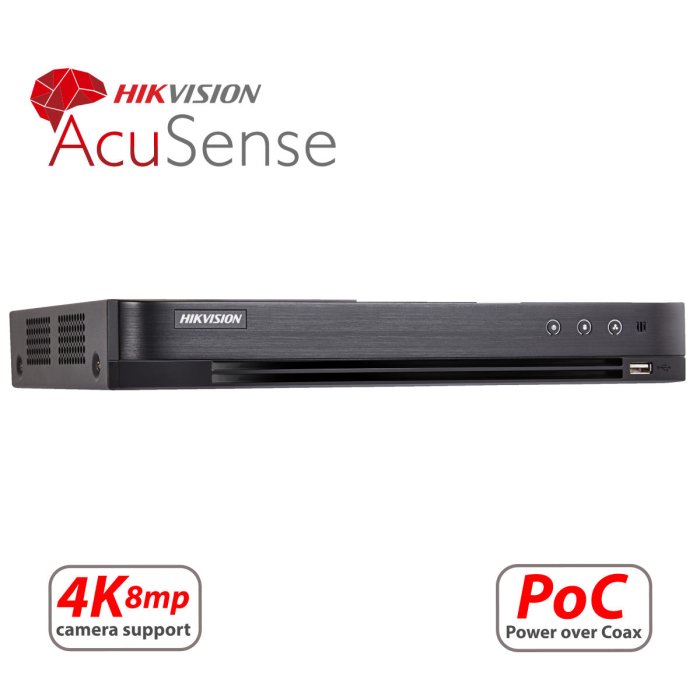

4CH, PoC (power over Coax) HIKVISION DVR, AcuSense, 8MP/12fps RECORDING
SKU
IDS-7204HTHI-M1/P(C)
- 4 Channel Hikvision DVR
- PoC (power over coax) 48v power over coax or CAT5/6 cable (CAT5/6 requires Balun)
- PoC supporting cameras required for PoC function, cameras using separate 12v power adapters also supported
- 4ch, AcuSense Human/vehicle analysis supported
- 4 x TVI-8MP/AHD-5MP/CVI/4MP max cameras supported
- Max TVI recording resolution 8MP-8fps, 5MP-12fps, 2MP-25fps
- Up to 4 x IP cameras (max 8MP) supported give total of 8 channel recording
- 1 x HDD supported, up to 10 TB capacity
- RS-485 supported, simplex output mode
- Coaxitron PTZ control up the coax, (Baluns over CAT5 supported)
In stock
Icon | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
IDS-7204HTHI-M1_P(C) Data Sheet | 1.4 MB | Download |
Hikvision PoC DVR.s provide 48v power down the coax or CAT5/6 cable when used with our PoC supporting video baluns. This 4 channel DVR supports connection of 8MP-TVI/5MP-AHD & 4MP-CVI cameras. These DVR’s are fully Hybrid and allow the connection of up to 4 IP cameras (max 8MP) along with 4 x HD-Analogue giving a total of 8 camera support. Additional IP cameras can be connected in place of unused HD-Analogue inputs.
